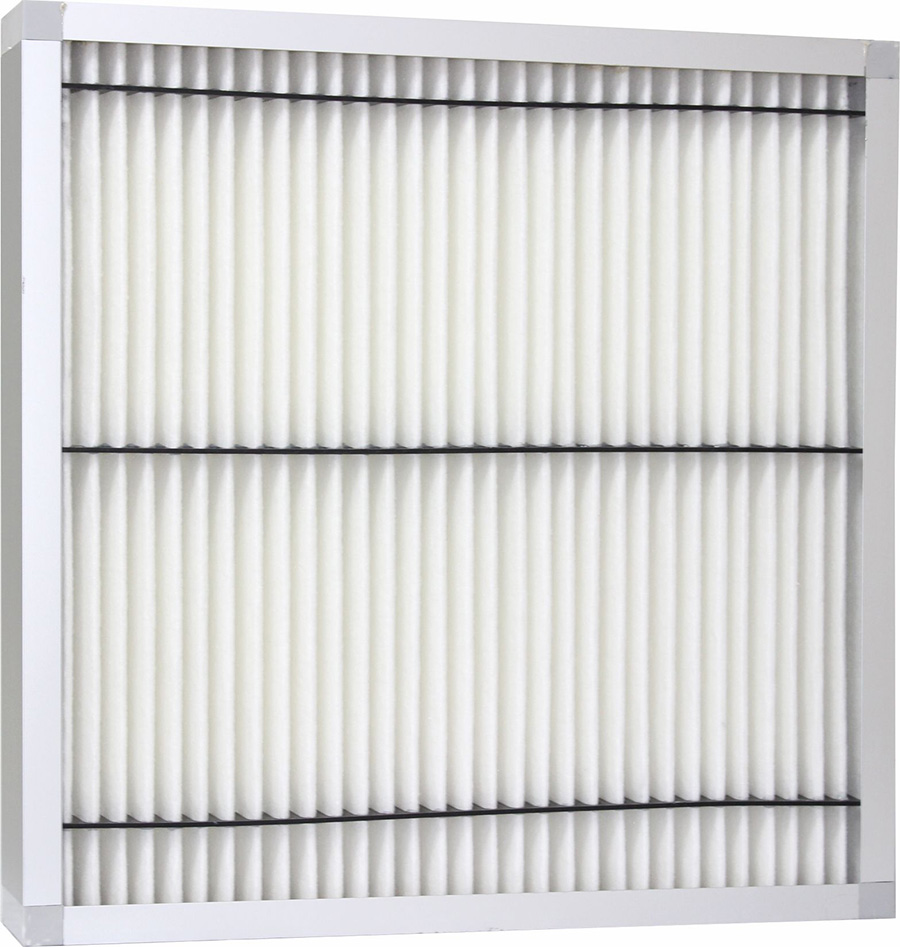

GRS PURE-V SELF PLEATING MEDIA
SELF-PLEATED EXTENDED SURFACE COARSE FILTER DISPOSABLE MEDIA| PRE-FILTER
PRODUCT SPECIFICATIONS
| Product Category | Self-Pleated Disposable Media |
| Media Material | Polypropylene, Non-woven Synthetic |
| Efficiency (ISO 16890) | ISO Coarse 50% / ISO Coarse 60% / ISO Coarse 65% |
| Filter Class (EN 779: 2012) | G2 / G3 / G4 |
| Filter Class (ASHRAE 52.2: 2017) | MERV 4 / MERV 6 / MERV 8 |
| Number of Pleats (Pleats / Linear Ft.) | Customizable as per client request |
| Media Support | Self-supporting media (No wire mesh support) |
| Filter Frame Material | Water-resistant cardboard frame or aluminum |
| Pleat Depth (Inch) | 1", 2" and 4" |
| Diameter of Web (mm) | 0.3 |
| Airflow (CMH) | 3400 |
| Velocity (m/sec) | 2.5 |
| Dust Holding Capacity (gm) | 120 |
| Initial Pressure Drop (Pa) | < 70 |
| Recommended Final Pressure Drop (Pa) | 250 |
| Working Temperature (Deg C) | 65 |
Applications
- General AHUs & FAHUs
- Ventilation Systems of All Kinds
- Public Buildings
- Industrial Buildings
- Car Painting Line
- Semiconductor Industry
- Food Industry
- Hospitals
- Pharmaceutical Industry
- Biomedical Applications
- Offices
- Factories
- Universities
- Airports
- Chemical Plants
- Cement Industries
- Air Intake and Exhaust of Industrial Plants
- Household Applications
