OIL WATER SEPARATOR SYSTEM
OIL & GREASE-WATER SEPARATOR SYSTEM FOR POLLUTION CONTROL IN COMMERCIAL KITCHENS
PRODUCT SPECIFICATIONS
| Product Category | Oil Water Separator System for Commercial Kitchens |
| Application | To separate oil and grease particulates from water mist in kitchen exhaust fumes |
| Casing Construction | Single-skin powder-coated or double-skin aluminum extruded profile (as per client requirement) |
| Base Frame | G.I base frame with lifting lugs or C-channels can be provided |
| Flanges | Pre-drilled flanges provided on both sides of the housing |

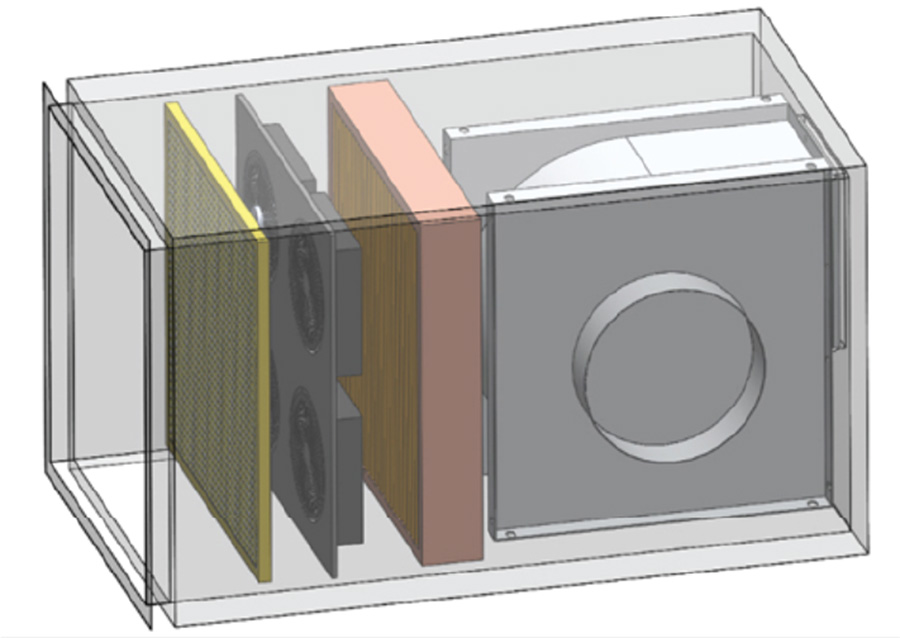

| Filter Section |

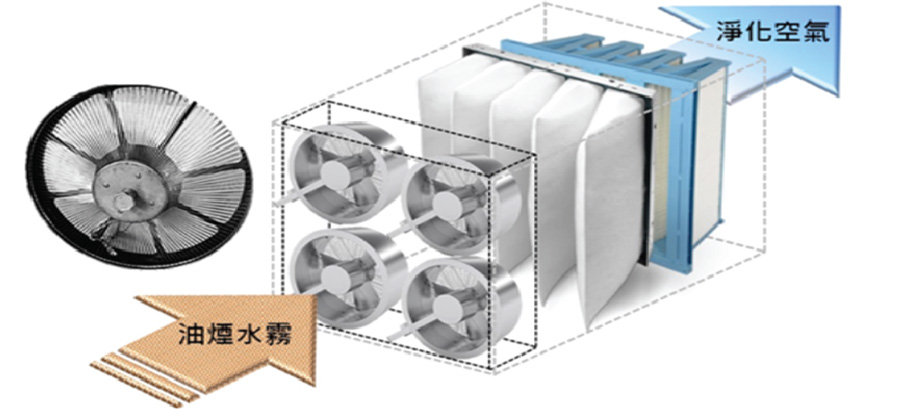

1. Stainless Steel Filter 2. Centrifugation Machine 3. Hydrophobic Filter 4. Electrostatic System for Oil Collection 5. Particle Filters for Arresting Black Smoke and Dust Particles 6. Activated Carbon for Odor Control (Optional) 7. Low-Temperature Plasma (Optional) |
| Fan Section |
1. DWDI – Double Width Double Inlet 2. SWSI – Single Width Single Inlet |
| Vibration Isolator | For fan motor assembly |
| Single Unit / Separate Units | Units can be supplied as a single unit or as separate units and can be assembled at the site |
| Doors | Side-access hinged doors or fully removable doors can be provided as per site conditions |
| Airflow | Airflows starting from 500 CFM to 24,000 CFM can be provided |
| Weather Proof Casing | Yes (Optional) |
| Control Panel | Remotely located control panel inside the kitchen, where the system can be turned on and off depending on the hood usage |
Applications
- Restaurants
- Food Courts
- Supermarkets
- Steakhouses
- Burger Joints
- Grill Houses
- Asian Cooking
- Bakeries
- Airport Lounges
- University Canteens
- Charcoal Cooking
Used for separating out oil and grease from water vapor in kitchen Exhaust systems
