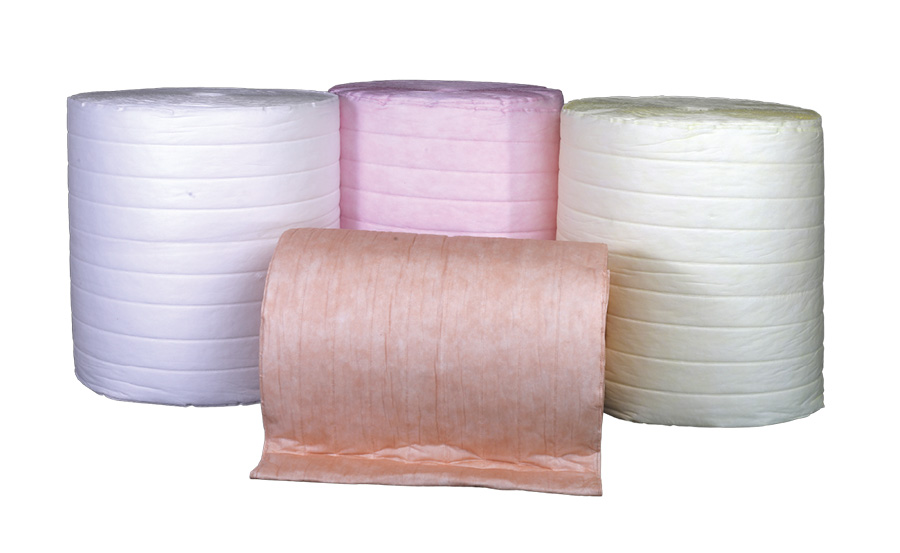

SMB Pocket Media – Dual Layer
NON-WOVEN SYNTHETIC EXTENDED SURFACE POCKET FILTER MEDIA ROLLS | MEDIUM & FINE FILTER
PRODUCT SPECIFICATIONS
| Product Category | Pocket Filter / Bag Filter |
| Efficiency (ISO 16890) | ePM10 60% / ePM10 70% / ePM10 80% / ePM10 85% / ePM10 90% |
| Filter Class (EN 779: 2012) | M5 / M6 / F7 / F8 / F9 |
| Filter Class (ASHRAE 52.2: 2017) | MERV 10 / MERV 11 / MERV 13 / MERV 14 / MERV 15 |
| Media Material | High-Density Polyester Fibers |
| Pocket Depth | 600 mm (Customizable as per request) |
| Maximum Relative Humidity | 100% |
| Maximum Temperature | 80°C |
| Flammability Classification | F1 as per DIN 53438 |
Applications
- Air Intake and Exhaust of General Ventilation Systems
- General AHUs & FAHUs
- Public Buildings
- Schools
- Laboratories
- Industrial Buildings
- Semiconductor Industry
- Food Industry
- Hospitals
- Pharmaceutical Industry
- Biomedical Applications
- Offices
- Factories
- Universities
- Airports
- Chemical Plants
- Car Painting Line
Used for Fine filtration
