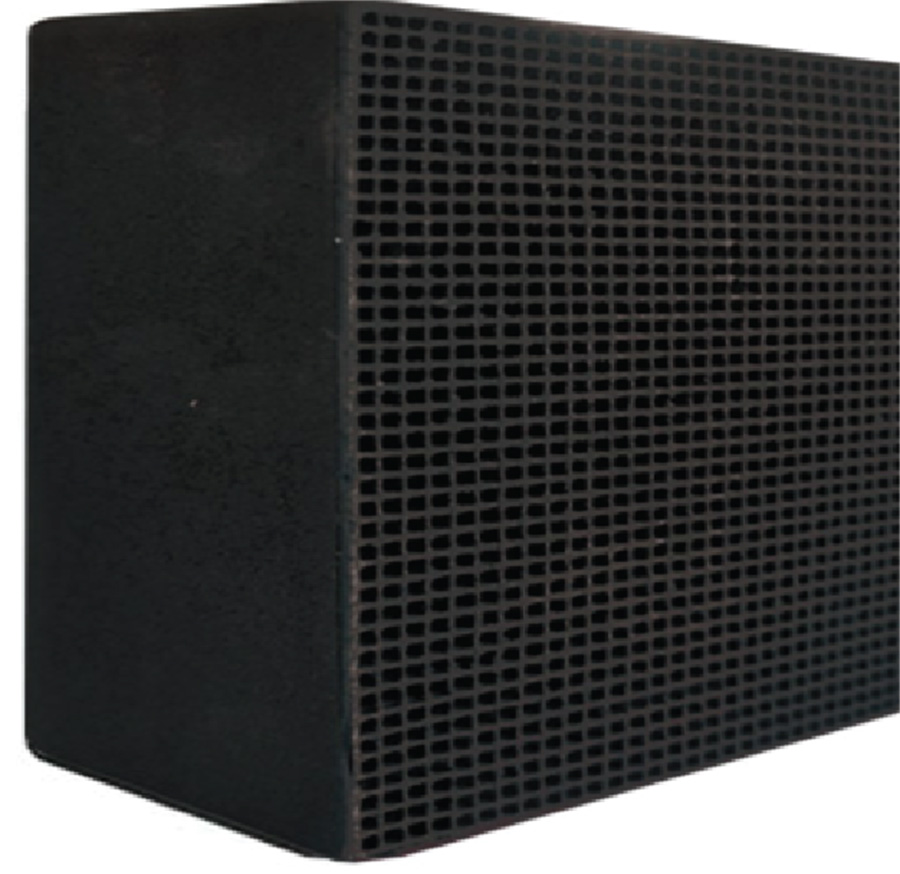

AEROSORB OT CHEMICAL FILTER
MICRO GRANULATED CYLINDRICAL ADSORPTION FILTER | CHEMICAL FILTER
PRODUCT SPECIFICATIONS
| Filter Category | High Adsorption Rigid Box Honeycomb Chemical Filter |
| Filter Depth | 4" Thick (Customizable as per request) |
| Frame Material | G.I / SS / Al / Plastic (Non-Header Construction) |
| Frame Construction | Box Type / Panel Type (Available in other geometrical shapes) |
| Filter Construction | Activated Carbon / Chemical Media is enclosed with Metal / Plastic frame casing with sealing strips on each cell to form standard-size filter modules |
| Standard Dimension (mm) | 610W × 610H × 105D (Customizable) |
| Cells Per Square Inch* (CPSI) | 150 |
| Airflow | 3400 CMH or 2000 CFM |
| Recommended Air Velocity | 1.2 m/sec – 2.5 m/sec |
| Initial Pressure Drop | 0.25" Wg – 0.57" Wg |
| Weight (Standard Size) | 2–2.5 kg |
| Surface Area | >700 m²/g |
| Hardness Strength | 1.2–2.4 MPa |
| Maximum Relative Humidity | < 70% |
| Maximum Temperature | 10°C–51°C for best performance |
| Initial Pressure Drop | < 0.58" Wg |
| Recommended Final Pressure Drop | 1.2" Wg |
| Total Odor (VOC) Removal Efficiency | > 90% |
Applications
- Restaurants
- Commercial Kitchens
- Food Courts
- Barbecue Restaurants
- Factory Canteens
- Supermarket Kitchens
- Steakhouses
- Burger Joints
- Grill Houses
- Asian Food Houses
- Bakeries
- Airport Lounges
- University Canteens
- Charcoal Cooking
- Food Factories
