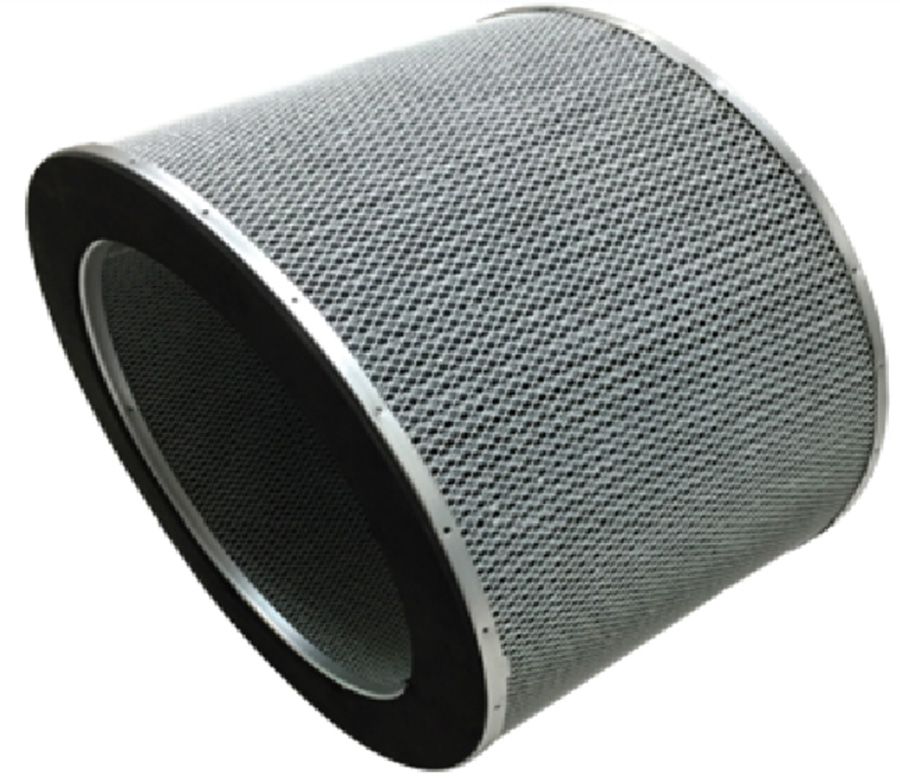

AEROSORB OT CHEMICAL FILTER
MICRO GRANULATED CYLINDRICAL ADSORPTION FILTER | CHEMICAL FILTER
PRODUCT SPECIFICATIONS
| Filter Category | High-Efficiency Cylindrical Mini-Pleated Chemical Filter |
| Cylinder Depth | Customizable as per request |
| Frame Material | Galvanized Steel |
| Frame Construction | Cylindrical |
| Filter Media | Non-woven fiber material in mini-pleat construction with bonded Activated Carbon (Micro Granules), Alumina impregnated with Potassium Permanganate or Sodium Permanganate, or a 50-50 blend of Carbon and Chemical Media (Customizable) |
| Efficiency (ISO 16890) | ePM10 60% / ePM10 70% / ePM1 60% / ePM1 70% / ePM1 85% |
| Filter Class (EN 779: 2012) | M5, M6, F7, F8, F9 (HEPA Media available upon request) |
| Filter Class (ASHRAE 52.2: 2017) | MERV 10, MERV 12, MERV 13, MERV 14, MERV 15 |
| Media Frame Bonding | 2-Component Polyurethane Sealant |
| Face Guard | Expanded Metal Mesh |
| Gasket (Optional) | Upstream and downstream gasketing available (Semicircular Polyurethane Foam or Neoprene Type) |
| Standard Dimension (mm) | Customizable as per request |
| Airflow | 3400 CMH |
| Face Velocity | 2.5 m/sec |
| Weight (Standard Size) | Customizable as per request |
| Maximum Relative Humidity | < 70% |
| Maximum Temperature | 10°C–50°C for best performance |
| Initial Pressure Drop | 0.48" Wg |
| Recommended Final Pressure Drop | 1.2" Wg |
| Life Span | Customizable as per request |
| Target Gas | VOCs, SO2, H2S, NO2, NOx, Amines and Aldehydes (Depends on customer application) |
Applications
- Semiconductor (Wafer Process)
- Cleanroom Applications
- Pharmaceutical Industry
- Medical Field
- Chemical Laboratories
Light to medium odor control applications
