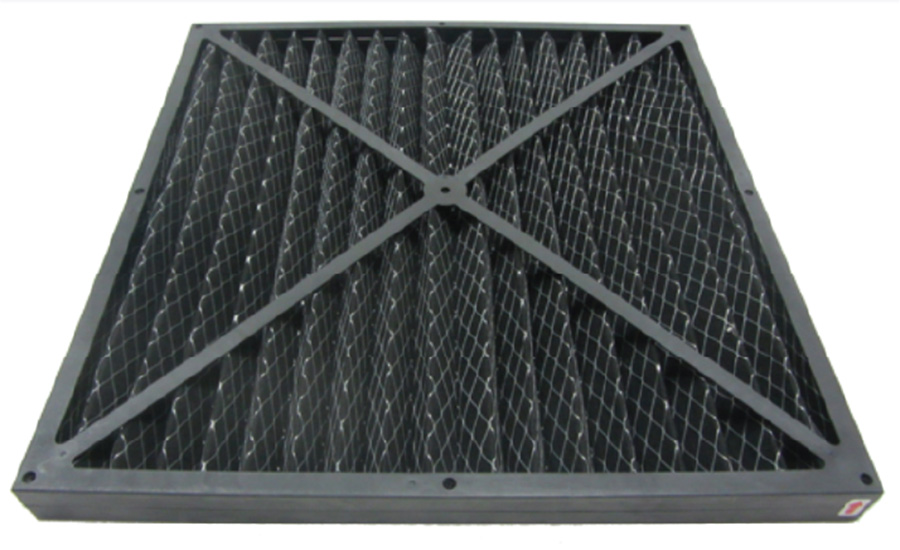

FILOSORB- CLN-PLEAT
CARBON- ADSORPTION MEDIA PLEATED FILTER | MOLECULAR & GAS-PHASE MEDIA
PRODUCT SPECIFICATIONS
| Product Category | |
| Raw Material | Coconut Shell Carbon & Synthetic Substrate |
| Media Material | Non-woven Synthetic PET Media impregnated (soaked) with micro-fine carbon |
| Media Support | Galvanized Steel Wire Mesh Support on both sides |
| Frame | G.I / SS / Aluminum / Wet-Strength Beverage Board |
| Filter Depth | 1", 2" & 4" |
| Media Efficiency (Synthetic Substrate) |
EN 779 – G3 / G4 ASHRAE 52.2 – MERV 6 / MERV 8 ISO 16890 – ISO COARSE 60% / ISO COARSE 65% |
| Maximum Humidity | 70% |
| Maximum Temperature | 40°C |
| Final Pressure Drop | 1.00" Wg |
Applications
- Offices
- Airports
- Commercial Buildings
- Apartment Complexes
- Industrial Buildings
- Classrooms
- Residential Areas
- High-End HVAC Systems
- Cleanroom Inlet Filtration
- Airports
- Museums
- Pre-Chemical Filters in Office Buildings
- Automobiles
- Commercial Restaurants and Hotels
- Industrial Buildings
- Laboratories
- Human Odors
- Poultry Farms
- Tobacco Smoke
- Tar Odors
- Toilet Odors
- Paint Booths
- Chemical Factories
Used for light to medium odor control and Molecular filtration applications, typically used in
