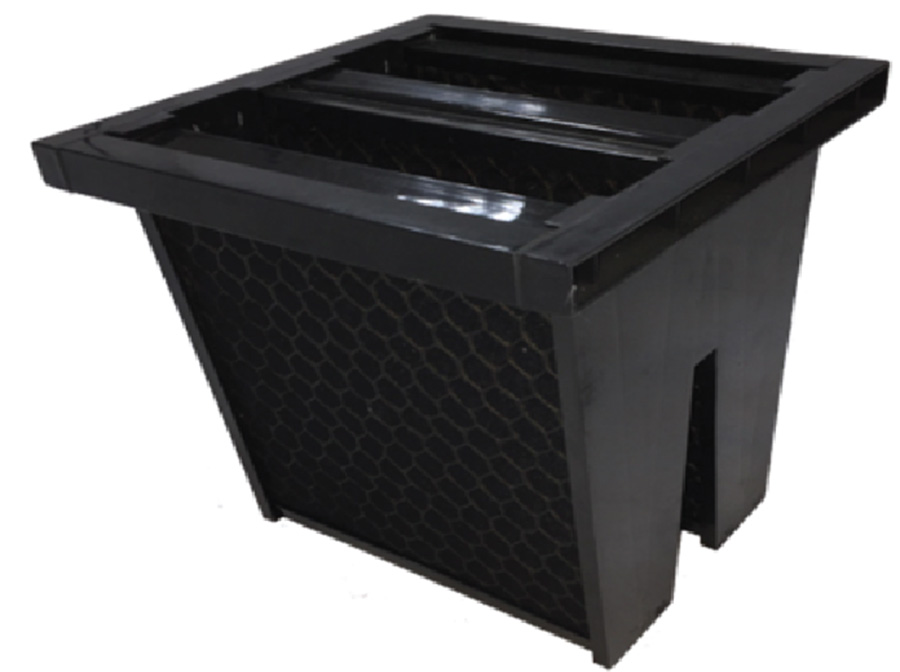

AEROSORB-BVC V-BANK CHEMICAL FILTER
MICRO GRANULATED RIGID BOX V-TYPE ADSORPTION FILTER | CHEMICAL FILTER
PRODUCT SPECIFICATIONS
| Filter Category | |
| Filter Depth | 12" |
| Frame Material | ABS Plastic – 4V |
| Frame Construction | Standard Single Header (in 20 mm / 25 mm) |
| Filter Media |
1. Granular Activated Carbon suspended in Honeycomb Packs 2. Granular Alumina impregnated with Potassium Permanganate or Sodium Permanganate suspended in Honeycomb Packs 3. 50-50 Blend of Carbon and Chemical Media suspended in Honeycomb Packs (Customizable Media) |
| Media Packs | 3/4" Honeycomb Media Packs filled with Granular Sorbent |
| Media Frame Bonding | 2-Component Polyurethane Sealant |
| Gasket (Optional) | Upstream, downstream and side gasketing available (Continuous Polyurethane or Neoprene Type) |
| Standard Dimension (mm) | 595W × 595H × 292D (Customizable) |
| Airflow | 3400 CMH or 2000 CFM for standard face size of 24" × 24" |
| Face Velocity | 2.5 m/sec |
| Weight (Standard Size) | < 15 kg |
| Maximum Relative Humidity | < 70% |
| Maximum Temperature | 10°C–55°C for best performance |
| Initial Pressure Drop | < 0.48" Wg |
| Recommended Final Pressure Drop | 1.2" Wg |
| Life Span | 12 Months |
| Target Gas | VOCs, SO2, H2S, NO2, NOx, Amines and Aldehydes (Depends on customer application) |
Applications
- Semiconductor (Wafer Process)
- Cleanroom Applications
- Odor Control in HVAC Systems
- Airports
- Museums
- Apartment Complexes
- Commercial Cooking Hoods
- Residential Areas
- Hospitals
- Laboratories
- Human Odors
- Toilet Odors
Medium to Heavy duty Gas-Phase Pollutant control applications
