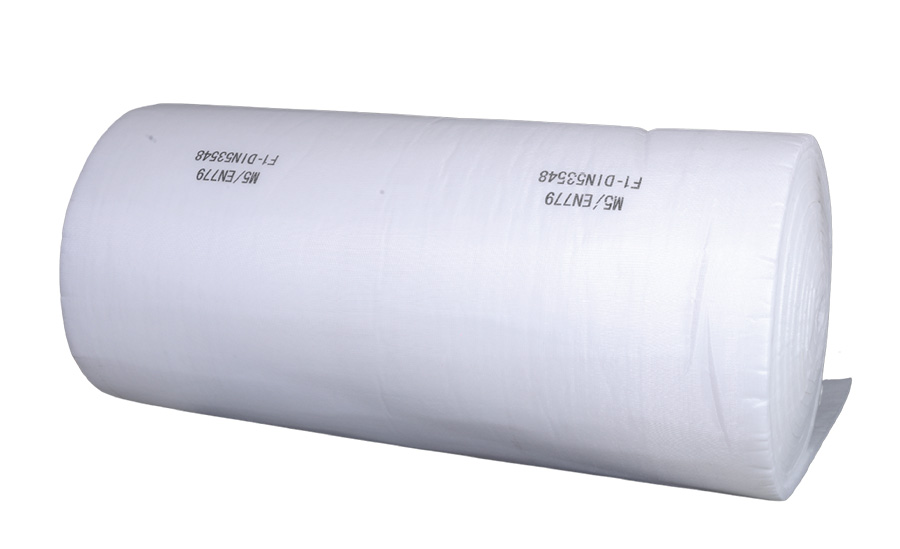

AERO CEILING HIGH EFFICIENCY FILTER
HIGH TENSILE STRENGTH POLYESTER MEDIA ROLLS & PADS| PAINT BOOTH FILTERS
PRODUCT SPECIFICATIONS
| Product Category | Spray Booth Filter media rolls |
| Media Material | PET (Polyethylene Terephthalate), also known as Polyester – Non-woven Synthetic media |
| Efficiency (ISO 16890) | ISO ePM10 60% |
| Filter Class (EN 779: 2012) | M6 |
| Filter Class (ASHRAE 52.2: 2017) | MERV 11 |
| Special Tackifier Coating | Available in full-depth impregnation, medium-depth impregnation, and initial-layer impregnation |
| Weight | 480 g/m² |
| Dust Holding Capacity | 748 g/m² |
| Filter Depth | 1” |
| Media Roll Sizes | 2 × 20 M, 1 × 20 M (customizable as per request) |
| Initial Pressure Drop @ 0.25 m/sec | 27 Pa |
| Recommended Final Pressure Drop | 450 Pa |
| Operating Velocity | 0.25 m/s – 0.5 m/s |
| Maximum Relative Humidity | 100% |
| Maximum Continuous Working Temperature | 60°C |
| Flammability | Self-extinguishing type as per DIN 53438-F1 |
Applications
- Auto assembly paint booths
- Down Draft Paint Spray Booths
- Automotive paint repair in after markets
- Surface treatment facilities in vehicle after markets
- Car Painting Lines
- Pre-filter in Air Conditioning
Used for Heavy duty Filtration in
