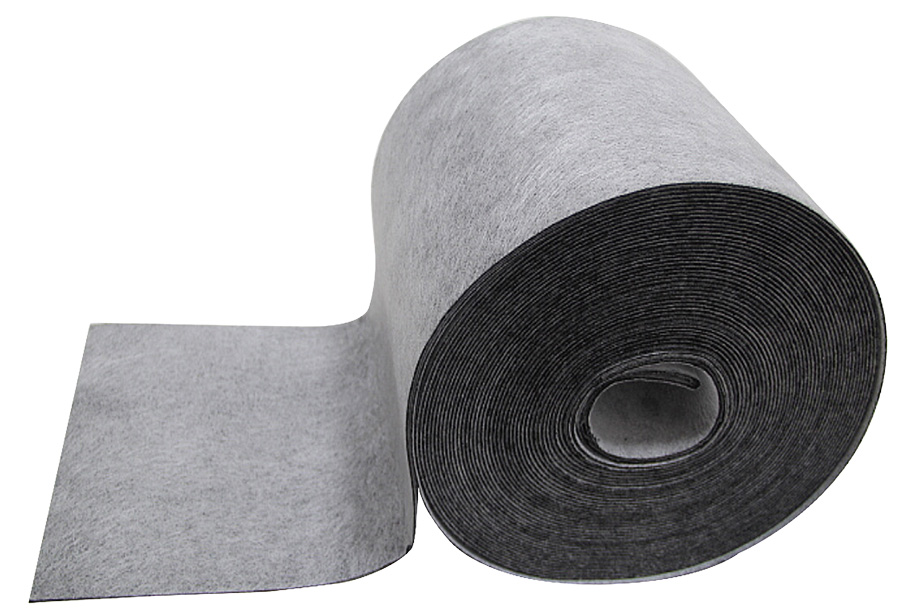

FILOSORB-MIXX
MIXED ADSORPTION MICRO-GRANULATED CARBON MEDIA | MOLECULAR & GAS-PHASE MEDIA
PRODUCT SPECIFICATIONS
| Product Category | Fine Granular Activated Carbon | |
| Raw Material | Coconut Shell Carbon, Alumina & Synthetic Substrate Layer | |
| Media Constituents |
The granules can be Plain Activated Carbon. Granules can be a blend of Plain Activated Carbon and Impregnated Activated Carbon. Granules can also be a blend of Plain Activated Carbon and Impregnated Alumina. All chemical granules are bonded to a synthetic substrate layer. |
|
| Media Efficiency (Substrate) |
EN 779 – M5 / M6 / F7 / F8 / F9 ASHRAE 52.2 – MERV 10 / 12 / 13 / 14 / 15 ISO 16890 – ePM10 60% / ePM10 70% / ePM1 60% / ePM1 70% / ePM1 80% |
|
| Model | FILOSORB-SERV | FILOSORB-NAAC |
| Base Weight | 200g – 1600g | 200g – 1600g |
|
Target Gas (Acid ~ Base ~ VOC ~ MIX) |
ACID | VOC |
| (H2S, SO2, HCl, Cl, F...) | ||
| Media (Activated Carbon, Alumina) | Coconut Carbon | Coconut Carbon |
| Mesh | 30*60 | 30*60 |
| CTC Value | >90 | >85 |
| Treatment Agent | KOH, K2CO3 | N/A |
| KI, KMnO4 | ||
| Ratio | 8-12 | N/A |
| Recyclable | Yes | |
Applications
- High-End HVAC Systems
- Cleanroom Inlet Filtration
- Microelectronics Industry
- Airports
- Museums
- Upscale Restaurants and Hotels
- Industrial Buildings
- Laboratories
- Human Odors
- Poultry Farms
- Tobacco Smoke
- Tar Odors
- Toilet Odors
- Paint Booths
- Chemical Factories
Medium to Heavy duty Molecular & odor control applications
