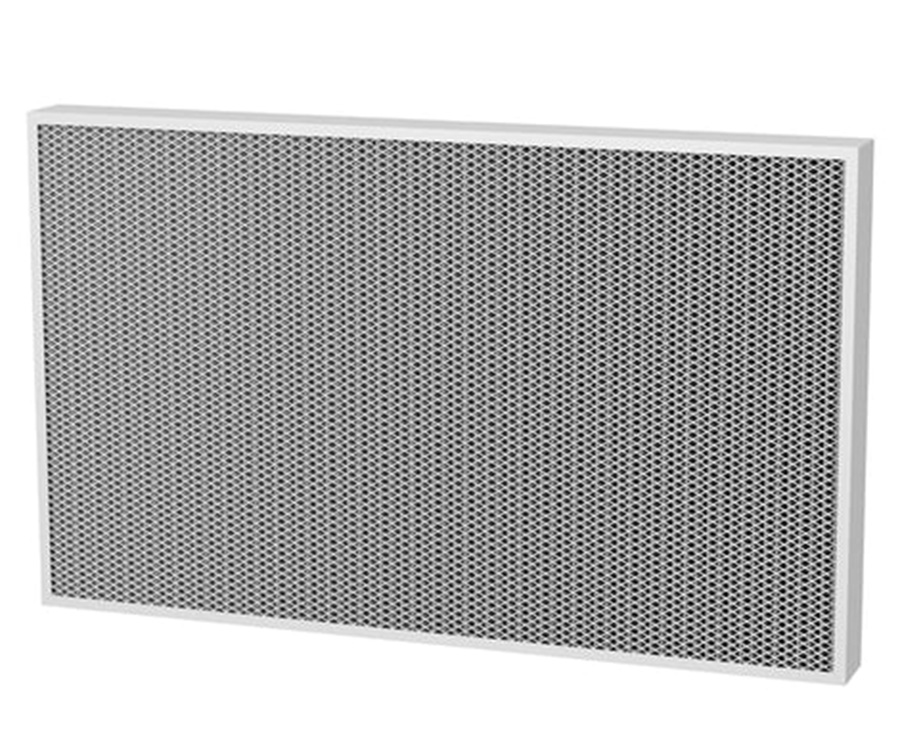

AEROSORB PTC- PANEL CHEMICAL FILTER
MICRO GRANULATED RIGID PLEATED PANEL ADSORPTION FILTER | CHEMICAL FILTER
PRODUCT SPECIFICATIONS
| Filter Category | High-Efficiency Rigid Panel Pleated Chemical Filter |
| Filter Depth | 4" (Customizable) |
| Frame Material | Metal Frame – G.I, SS, Aluminum |
| Frame Construction | Panel Type |
| Filter Media | Non-woven fiber material layer with Activated Carbon (Micro Granules), Alumina impregnated with Potassium Permanganate or Sodium Permanganate, or a 50-50 blend of Carbon and Chemical Media (Customizable) |
| Efficiency (ISO 16890) | ePM10 60% / ePM10 70% / ePM1 60% / ePM1 70% / ePM1 85% |
| Filter Class (EN 779: 2012) | M5, M6, F7, F8, F9 (HEPA Media available upon request) |
| Filter Class (ASHRAE 52.2: 2017) | MERV 10, MERV 12, MERV 13, MERV 14, MERV 15 |
| Face Guard | Both on inlet and outlet sides |
| Media Frame Bonding | 2-Component Polyurethane Glue |
| Gasket (Optional) | Upstream, downstream and side gasketing available (Continuous Polyurethane or Neoprene Type) |
| Standard Dimension (mm) | 900W × 525H × 100D (Customizable) |
| Airflow | 3400 CMH or 2000 CFM |
| Face Velocity | 2.5 m/sec |
| Weight (Standard Size) | < 13 kg |
| Maximum Relative Humidity | < 70% |
| Maximum Temperature | 10°C – 50°C for best performance |
| Initial Pressure Drop | < 0.48" Wg |
| Recommended Final Pressure Drop | 1.2" Wg |
| Life Span | 12 Months |
| Target Gas | VOCs, SO2, H2S, NO2, NOx, Amines and Aldehydes (Depends on customer application) |
Applications
- Semiconductor (Wafer Process)
- Cleanroom Applications
- Odor Control in HVAC Systems
- Airports
- Museums
- Apartment Complexes
- Light Cooking Hoods
- Residential Areas
- Hospitals
- Laboratories
- Human Odors
- Toilet Odors
Light to medium odor control applications
