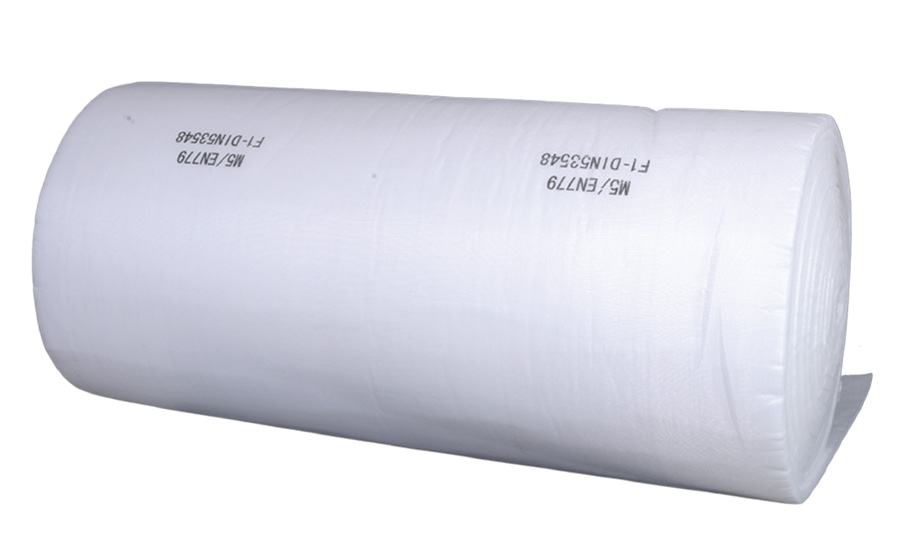

AERO CEILING FILTER
HIGH TENSILE STRENGTH POLYESTER MEDIA ROLLS & PADS| PAINT BOOTH FILTERS
PRODUCT SPECIFICATIONS
| Product Category | Spray Booth Filter media rolls |
| Media Material | PET (Polyethylene Terephthalate) also known as Polyester- Non woven Synthetic media |
| Efficiency (ISO 16890) | ISO ePM10 50% |
| Filter Class (EN 779: 2012) | M5 |
| Filter Class (ASHRAE 52.2: 2017) | MERV 10 |
| Special Tackifier Coating | Available in Full depth impregnation, medium depth impregnation, Initial Layer impregnations |
| Weight | 480 g/m² |
| Dust Holding Capacity | 748 g/m² |
| Filter Depth | 1” |
| Media Roll sizes | 2 x20M, 1 x 20M (customizable as per request) |
| Initial Pressure Drop @ 0.25 m/sec | 27 Pa |
| Recommended Final Pressure Drop | 450 Pa |
| Operating Velocity | 0.25 m/s – 0.5 m/s |
| Maximum Relative Humidity | 100% |
| Maximum Continuous working Temperature | 60°C |
| Flammability | Self-Extinguishing type as per DIN 53438-F1 |
Applications
- Down Draft Paint Spray Booths
- Automotive paint repair in after markets
- Surface treatment facilities in vehicle after markets
- Car Painting Lines
Used for Medium to Heavy duty Filtration
