FILOSORB-M
MIXED ADSORPTION MICRO-GRANULATED MEDIA | MOLECULAR & GAS-PHASE MEDIA
PRODUCT SPECIFICATIONS
| Product Category | Beads / Granules of Ion Exchange Resin (IER), Activated Carbon, Alumina |
| Raw Material | Ion Exchange Resin, Coconut Shell Carbon, Alumina |

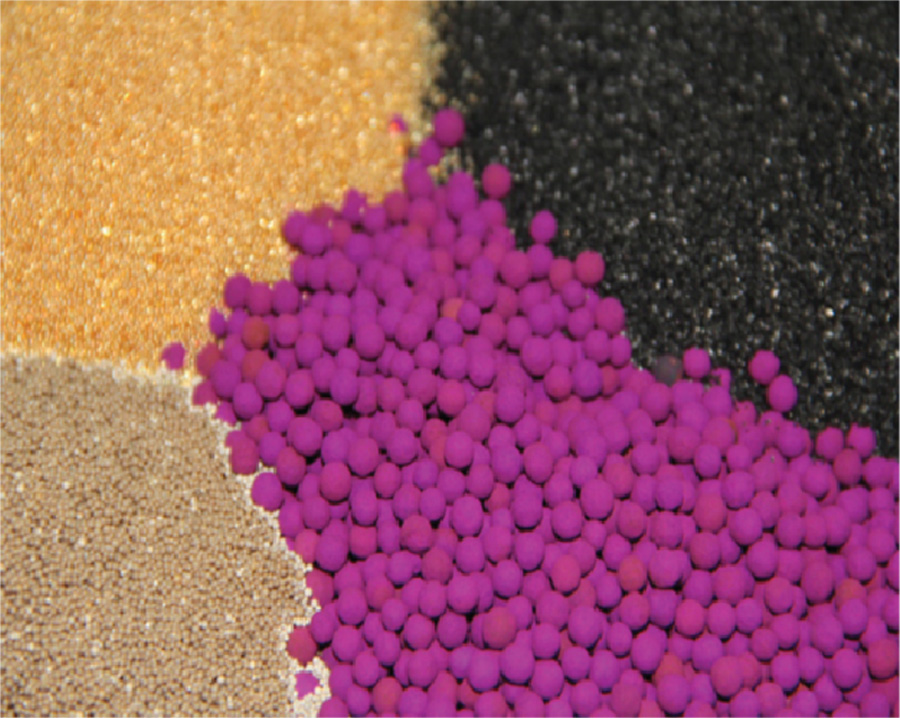

| Media Constituents | Beads / Granules of Ion Exchange Resin, Plain Activated Carbon, Impregnated Activated Carbon or Impregnated Alumina. All finely granulated media can be bonded to a synthetic substrate layer. |
| Polymer Structure of Ion-Exchange Resin | Gel Polystyrene Cross-Linked with Divinylbenzene |
| Appearance | Spherical Beads |
| Functional Group | Sulphonic Acid |
| Ionic Form | H+ |
| Total Capacity | 2.0 eq/L (43.7 Kgr/Ft³) (Na Form) |
| Moisture Retention | 25–30% (H Form) |
| Mean Diameter | 570 ± 50 µm |
| Uniformity Coefficient | ≤ 1.2 |
| Reversible Swelling, Na H (Max) | 10% |
| Specific Gravity | 1.2 |
| Shipping Weight (Approximate) | 745–770 gm/L (46.6–48.1 lb/Ft³) |
| Temperature Limit | 120 Deg C (248.0 ºF) |
Applications
- High-End HVAC Systems
- Cleanroom Inlet Filtration
- Microelectronics Industry
- Airports
- Museums
- Upscale Restaurants and Hotels
- Industrial Buildings
- Laboratories
- Human Odors
- Poultry Farms
- Tobacco Smoke
- Tar Odors
- Toilet Odors
- Paint Booths
- Chemical Factories
Heavy duty Molecular & odor control applications
