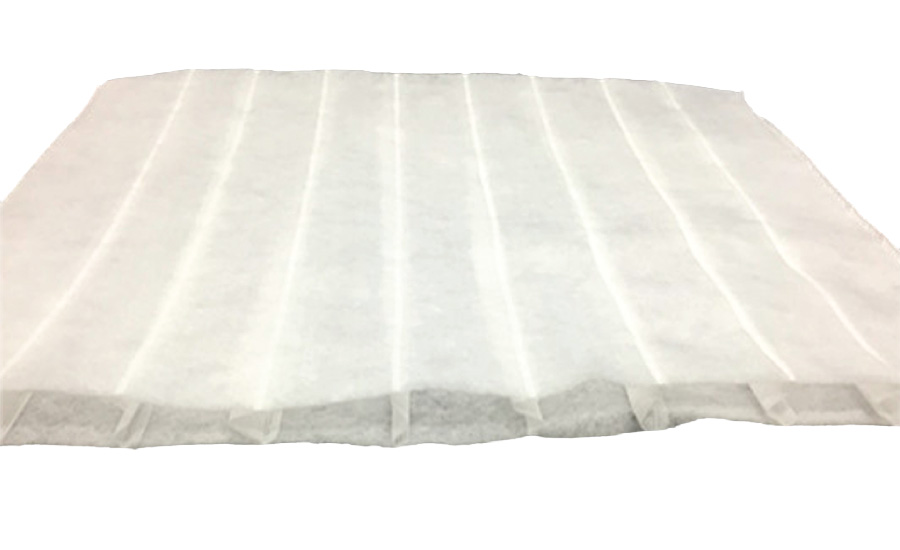

PRE-POCKET MEDIA
SYNTHETIC DURABLE POLYESTER READY-MADE POCKET MEDIA | PRE-FILTER
PRODUCT SPECIFICATIONS
| Product Category | Ready-Made Coarse Filter Pockets |
| Media Material | PET (Polyethylene Terephthalate), also known as Polyester – 100% Non-woven Synthetic media |
| Efficiency (ISO 16890) | ISO COARSE 65% |
| Filter Class (EN 779: 2012) | G4 |
| Filter Class (ASHRAE 52.2: 2017) | MERV 8 |
| Media Thickness (mm) | 5 mm |
| Dimension (L × W × D) mm | 610 × 610 × 560 (Customizable as per request) |
| Pocket Number | As per customer request |
| Airflow (CMH) | 3400 (For full-size filter) |
| Velocity | 2.5 m/s |
| Initial Pressure Drop (Pa) | < 70 |
| Recommended Replacement Pressure Drop (Pa) | 250 |
| Dust Holding Capacity (gm/m²) | 250 |
| Relative Humidity | 100% |
| Temperature Resistance Continuous (ºC) | ≤ 70 |
Applications
- Air Intake and Exhaust of Industrial Plants
- General AHUs & FAHUs
- Public Buildings
- Industrial Buildings
- Car Painting Line
- Semiconductor Industry
- Food Industry
- Hospitals
- Pharmaceutical Industry
- Biomedical Applications
- Offices
- Factories
- Universities
- Airports
- Chemical Plants
- Cement Industries
- Household Applications
Used for Light to medium duty Coarse filtration
