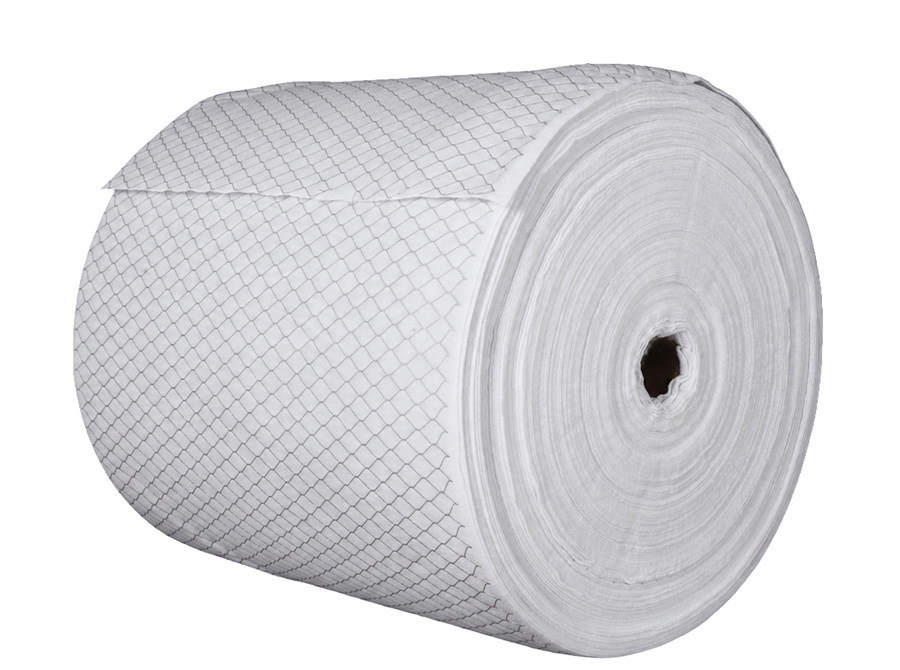

LAMINATED DISPOSABLE MEDIA ROLL
PLEATABLE EXTENDED SURFACE COARSE FILTER DISPOSABLE MEDIA ROLL| PRE-FILTER
PRODUCT SPECIFICATIONS
| Product Category | Disposable Pleated Pre-Filter Media Roll |
| Media Material | Polypropylene non-Woven synthetic |
| Efficiency (ISO 16890) | ISO Coarse 60%/ISO Coarse 65% |
| Filter Class (EN 779: 2012) | G3 / G4 |
| Filter Class (ASHRAE 52.2: 2017) | MERV 6 / MERV 8 |
| Media Support | Expanded metal support grid on air exit side |
| Media Color | White |
| Maximum Working Temperature | 80 Deg C |
| Thickness of Filter media | 3 mm |
| Length of Media Roll | 180 Meter (Customizable as per request) |
| Width of media Roll | 50 cm to 150 cm |
| Base Weight | 90 gm/m² |
| Splices | 2 Per Roll/10% Of The Rolls |
| Telescoping | 1” Maximum |
Applications
- Fine Filtration in AHUs & FAHUs
- First stage filtration in Cleanrooms
- Hospitals
- Pharmaceutical
- Biomedical
- Factories
- Food Industry
- Public Buildings
- Universities
- Airport
- Offices
- Air Intake and exhaust of industrial plants
- Ventilation Systems of all kinds
Used for Medium to Heavy duty Fine filtration
