LPHD ES Media

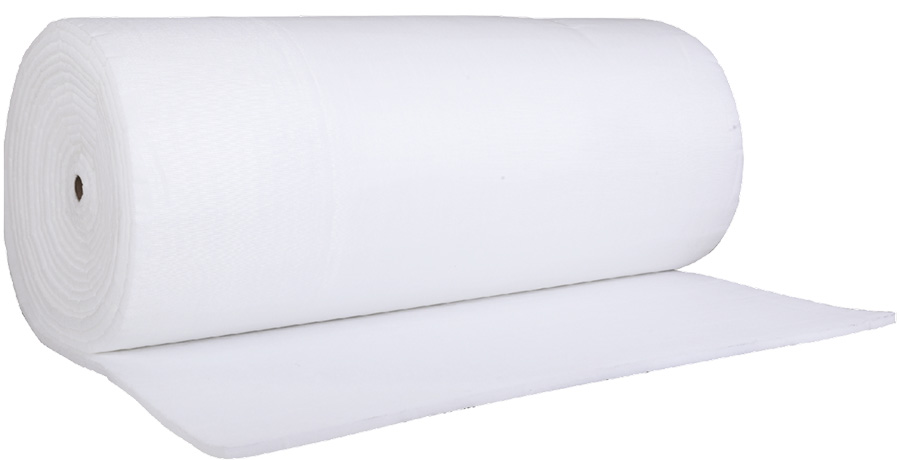

LPHD ES ELECTROSTATIC MEDIA

ELECTROSTATICALLY CHARGED POLYPROPYLENE EXTENDED SURFACE FILTER MEDIA ROLLS | MEDIUM & FINE FILTER

    • Applications

      Used for Medium and Fine filtration

    • Used in Face Masks
    • Air Intake and Exhaust of General Ventilation Systems
    • General AHUs & FAHUs
    • Public Buildings
    • Schools
    • Laboratories
    • Industrial Buildings
    • Semiconductor Industry
    • Food Industry
    • Hospitals
    • Pharmaceutical Industry
    • Biomedical Applications
    • Offices
    • Factories
    • Universities
    • Airports
    • Chemical Plants
    • Car Painting Line
    PRODUCT SPECIFICATIONS
    Product Category Synthetic Media Rolls
    Media Material Polypropylene Media (Non-Woven)
    Efficiency (ISO 16890) ISO Coarse 60% / ePM10 60% / ePM10 65% / ePM10 90%
    Filter Class (EN 779: 2012) G4, M5, M6, F9
    Filter Class (ASHRAE 52.2: 2017) MERV 8, MERV 10, MERV 11, MERV 15
    Media Roll Designation Electrostatic Filter Media
    (ATECLITE-306K)     		Electrostatic Filter Media
    (ATECLITE-407K)     		Electrostatic Filter Media
    (ATECLITE-508K)     		Electrostatic Filter Media
    (ATECLITE-915)
    Fabric Material Polypropylene Polypropylene Polypropylene Polypropylene
    Base Weight 75 gm/m² 85 gm/m² 95 gm/m² 200 gm/m²
    Maximum Working Temperature 65 Deg C 65 Deg C 65 Deg C 65 Deg C
    Thickness of Filter Media 1.2 mm 1.4 mm 1.5 mm 2.2 mm
    Length of Filter Roll 50 Mtr 50 Mtr 50 Mtr 50 Mtr
    Width of Filter Roll 2 Mtr 2 Mtr 2 Mtr 2 Mtr
    MERV Rating as per ASHRAE 52.2 MERV 8 MERV 10 MERV 11 MERV 15
    Filter Type Pre-Filter Medium Filter Medium Filter Medium Filter
    Efficiency at 0.3 µm 62.60% 72.40% 79.30% 95.40%
    Efficiency as per EN 779 G4 M5 M6 F9
    Air Velocity 5.3 cm/sec 5.3 cm/sec 5.3 cm/sec 5.3 cm/sec
    Air Volume 32 LPM 32 LPM 32 LPM 32 LPM
    Initial Pressure Drop 11 Pa 2.3 Pa 3.6 Pa 11.22 Pa
