Filsorb HIM

FILOSORB-HIM

BASIC ADSORPTION MICRO-GRANULATED MEDIA | MOLECULAR

    • PRODUCT SPECIFICATIONS

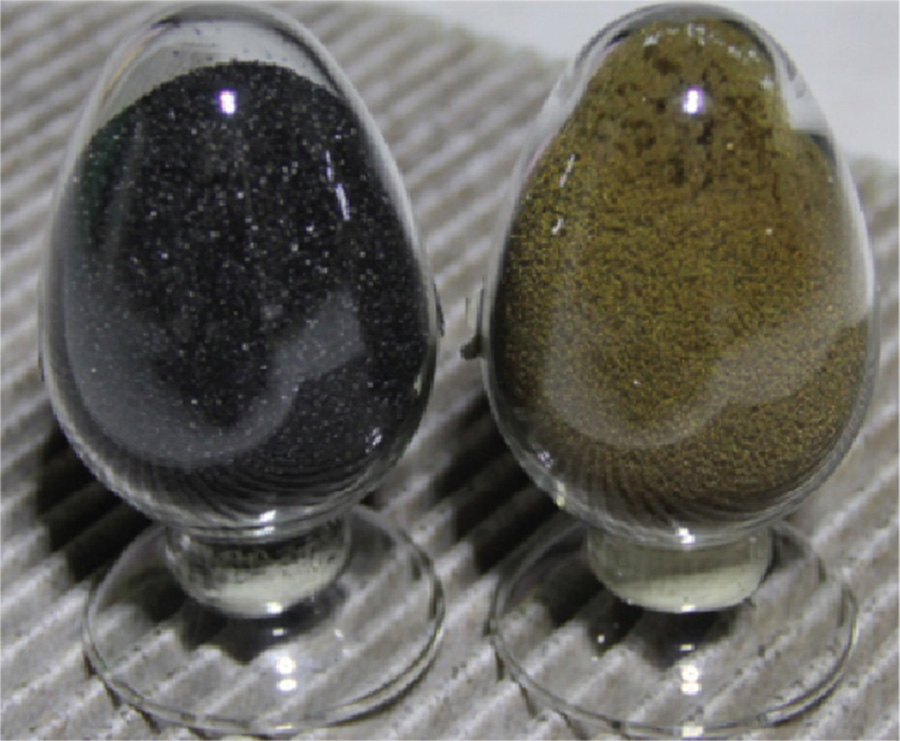

    Product Category Fine Granular Activated Carbon
    Raw Material Coconut Shell Carbon & Ion-Exchange Resin
    Media Constituents Activated Carbon and Ion-Exchange Resin or 50/50 Blend of
    Plain Activated Carbon & Impregnated Activated Carbon
    Test Method ASTM (American Society for Testing and Materials)
    Physical Properties Specification Typical Values
    Particle size distribution: on larger screen
    (ASTM MESH/mm) 20*50 MESH
    through smaller screen
    MAX.05%
    MIN. 90%
    MAX.05%
    2
    96
    2
    Apparent Density (gm/cc) MIN.0.5 0.55-0.60
    Moisture (% by wt.) (As Packed) 17.20%
    Ash (% by wt.) (As Packed) MAX.5 2.3
    PH MAX.4 3-
    Surface Area (sq.Mtr / gm) MIN.1100 1400+
    Carbon Tetra Chloride Activity (% by wt.) MIN.85 90+
    Iodine Adsorption (mg/gm)
    (AWWA B604)     		MIN.1300 1400+
    Hardness No. MIN.90 92.1
    Typical Loading of NH3(%W/W) at Equilibrium (%W/W) 5-8
    Typical Loading of CN3NH3(%W/W) at Equilibrium (%W/W) 4-8
    Recyclable Yes
    Applications

      Heavy duty Molecular & odor control applications

    • High-End HVAC Systems
    • Cleanroom Inlet Filtration
    • Airports
    • Museums
    • Refineries
    • Oil and Gas Industry
    • Microelectronics Industry
    • Commercial Restaurants and Hotels
    • Paper Mills
    • Industrial Buildings
    • Laboratories
    • Human Odors
    • Poultry Farms
    • Tobacco Smoke
    • Tar Odors
    • Toilet Odors
    • Paint Booths
    • Chemical Factories
