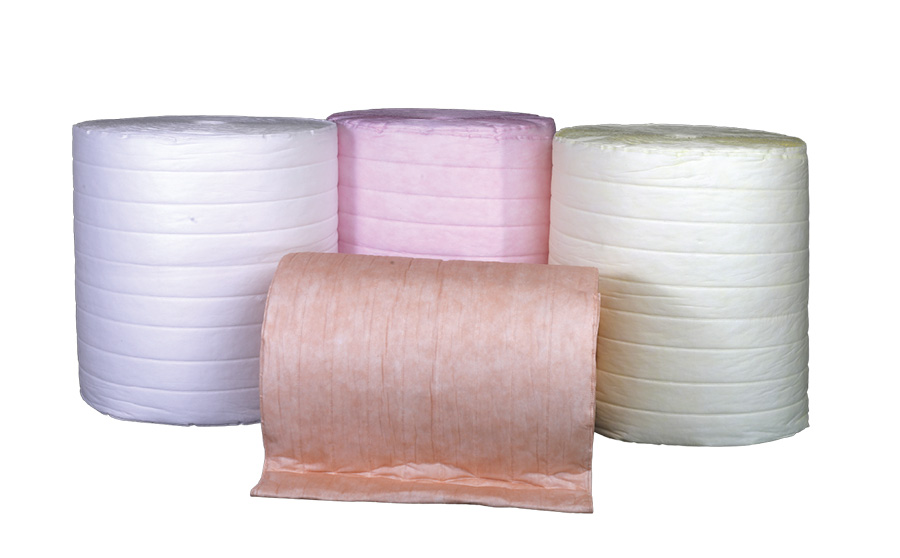

SMB Pocket Filter Media

SMB POCKET FILTER MEDIA ROLLS

NON-WOVEN SYNTHETIC EXTENDED SURFACE POCKET FILTER MEDIA ROLLS | MEDIUM & FINE FILTER

    • Applications

      Used for Fine filtration

    • Air Intake and Exhaust of General Ventilation Systems
    • General AHUs & FAHUs
    • Public Buildings
    • Schools
    • Laboratories
    • Industrial Buildings
    • Semiconductor Industry
    • Food Industry
    • Hospitals
    • Pharmaceutical Industry
    • Biomedical Applications
    • Offices
    • Factories
    • Universities
    • Airports
    • Chemical Plants
    • Car Painting Line
    PRODUCT SPECIFICATIONS
    Product Category Synthetic Media Rolls

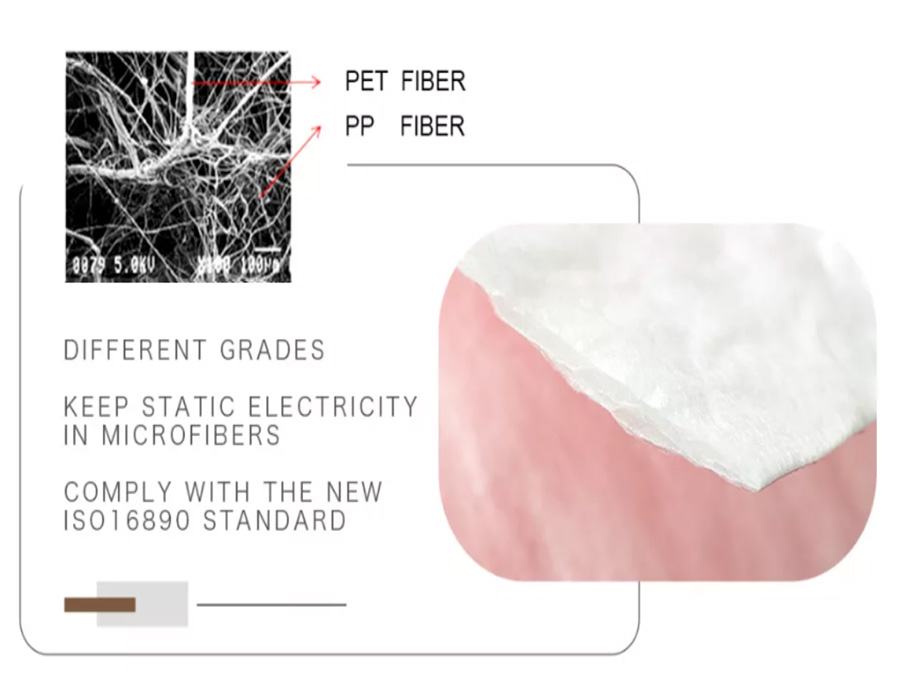

    Media Material Non-woven Synthetic Melt-blown Media
    Efficiency (ISO 16890) ePM10 60% / ePM10 70% / ePM10 80% / ePM10 85% / ePM10 90%
    Filter Class (EN 779: 2012) M5, M6, F7, F8, F9
    Filter Class (ASHRAE 52.2: 2017) MERV 10, MERV 12, MERV 13, MERV 14, MERV 15
    Designation Filter Media Roll-45%
    (AP-P045)     		Filter Media Roll-65%
    (SY-P065)     		Filter Media Roll-85%
    (SY-P085)     		Filter Media Roll-95%
    (SY-P095)     		Filter Media Roll-99%
    (SY-P099)
    Raw Material-Fabric 100% Polypropylene Fiber 100% Polypropylene Fiber 17 gm/m², Polypropylene Fiber 20 gm/m², Polypropylene Fiber 20 gm/m², Polypropylene Fiber
    85 gm/m², Electrostatic Media 85 gm/m², Electrostatic Media 95 gm/m², Electrostatic Media 110 gm/m², Electrostatic Media
    Maximum Working Temperature 65 Deg C 65 Deg C 65 Deg C 65 Deg C 65 Deg C
    Thickness of Filter Media 2 mm 2 mm 3 mm 3.5 mm 4 mm
    Length of Filter Roll 150 Mtr 150 Mtr 150 Mtr 150 Mtr 150 Mtr
    Width of Filter Roll 660 mm 660 mm 660 mm 660 mm 660 mm
    Base Weight 77 gm/m² 115 gm/m² 125 gm/m² 135 gm/m² 150 gm/m²
    MERV Rating as per ASHRAE 52.2 MERV 10 MERV 12 MERV 13 MERV 14 MERV 15
    Filter Type Secondary Pocket Filter Secondary Pocket Filter Secondary Pocket Filter Secondary Pocket Filter Secondary Pocket Filter
    Efficiency as per EN 779 M5 (45%) M6 (65%) F7 (85%) F8 (95%) F9 (99%)
    Air Volume 170 CFM 85 LPM 85 LPM 85 LPM 85 LPM
    Initial Pressure Drop 11 Pa 13 Pa 28 Pa 33 Pa 47 Pa
    Efficiency at 0.3 µm 52.90% 74.80% 86.00% 94.10%
